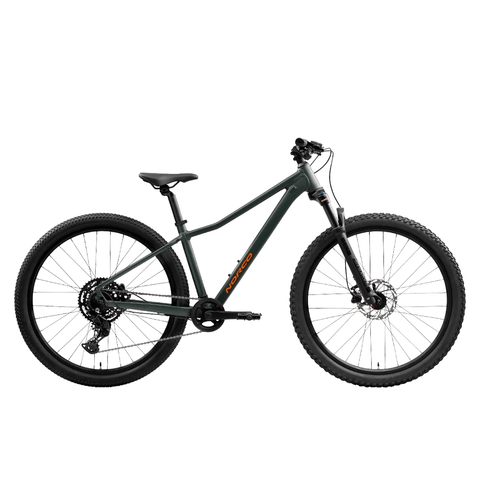

The Norco Charger 26 is a youth mountain bike with a low-standover aluminum frame and 26-inch wheels.
It features a 100 mm SR Suntour XCR Air fork, a Shimano Cues 9-speed drivetrain and Tektro hydraulic disc brakes. The frame and controls are designed for younger riders.
Manufacturer No Other Way limited lifetime warranty.
Technical Specifications
Frameset
| Component |
Specification |
| Frame |
Aluminum, 9x135mm QR, 26" |
| Fork |
SR Suntour XCR Air w/ Light Tune, 100mm , 9X100 QR |
Drivetrain
| Component |
Specification |
| Rear Shifter |
Shimano Cues SL-U4000, 9sp |
| Rear Derailleur |
Shimano Cues RD-U4000, 9sp, GS |
| Crankset |
Alloy 3pc, 152mm, 28T Narrow Wide |
| Bottom Bracket |
Sealed bearing, ST 68mm |
| Cassette |
Shimano Cues CS-LG300-9, 11-46T, 9sp |
| Chain |
KMC Z9 |
Brakes
| Component |
Specification |
| Front Brake |
Tektro HD-M286, Resin Pads |
| Front Brake Rotor |
Tektro. 160mm, 6-bolt |
| Rear Brake |
Tektro HD-M286, Resin Pads |
| Rear Brake Rotor |
Tektro. 160mm, 6-bolt |
| Brake Levers |
Tektro HD-M286, Hydraulic 2-Finger Jr. Levers |
Components
| Component |
Specification |
| Handlebar |
6061 Alloy DB 1.6mm , 720mm, 20mm rise |
| Stem |
Alloy 45mm Length, 31.8mm Clamp |
| Seatpost |
Norco Alloy 31.6mm, 250mm length |
| Headset |
External Cup Ball Bearing, 1-1/8" EC 34 |
| Headset Spacer |
1x10mm , 2x5mm |
| Saddle |
Norco Jr XC, Steel Rail |
| Grips |
Norco Youth, 115mm Length |
| Pedals |
Jr. MTB Flat, 9/16" |
| Seatpost Clamp |
Norco Alloy Bolted, 34.9mm ID |
Wheels
| Component |
Specification |
| Front Hub |
Formula DC-1420 , 9x100mm QR, 28h, 6-bolt |
| Rear Hub |
Formula DC-1425,10x135mm QR, HG, 38H, 6-bolt |
| Rims |
Aluminum DW, 28h, 26" MTB |
| Front Tire |
CY Trail, 26x2.25", Wire |
| Rear Tire |
CY Trail, 26x2.25", Wire |
| Spokes |
Stainless Steel w/Brass Nipples |
Weight
| Component |
Specification |
| Weight |
12.36 kg (27.2 lbs) |
Size Guide
| Size |
Rider height (cm) |
Rider height (ft and in) |
| 26″ |
133–147 cm |
4′ 4½″–4′ 10″ |
Centimetre values are rounded.
