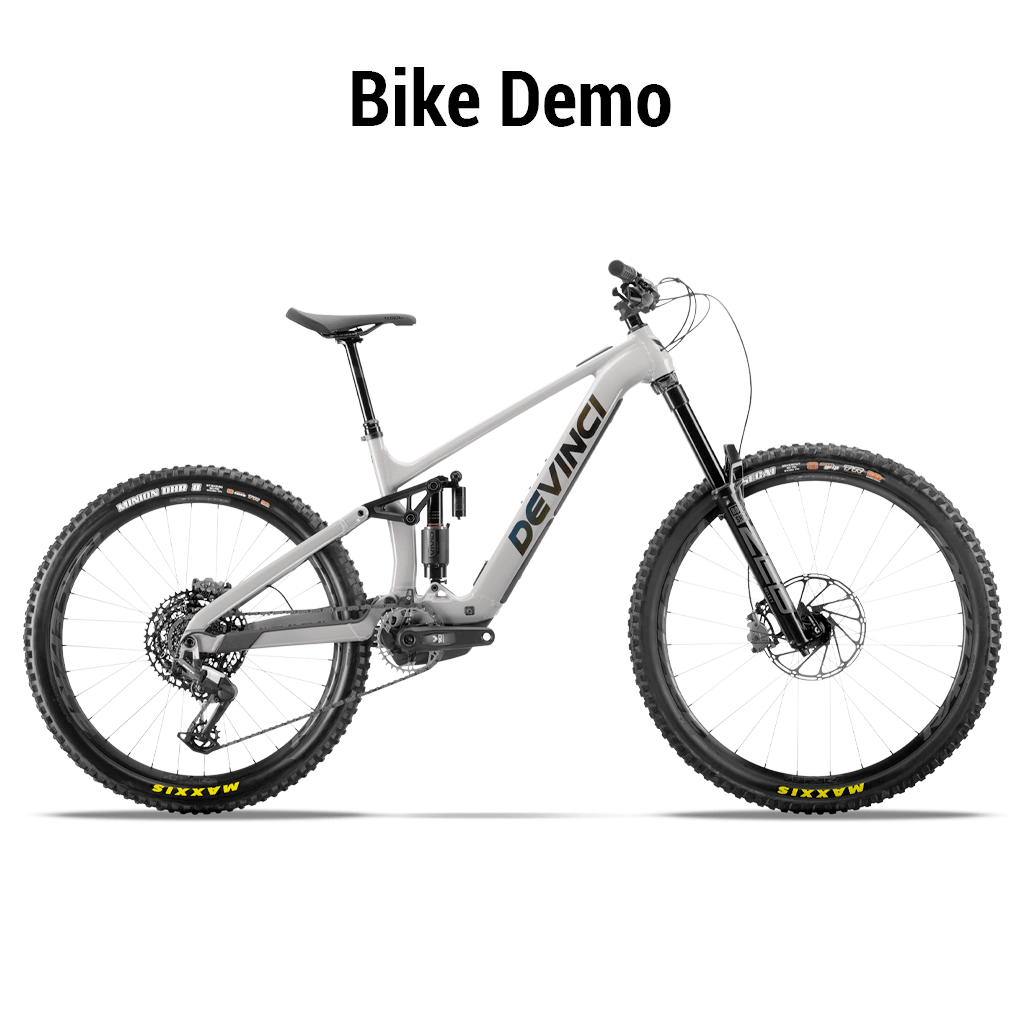

Demo E-Bike Devinci E-SpartanLite MX Eagle 90 - Holograyphic

Demo E-Bike Devinci E-SpartanLite MX Eagle 90 - Holograyphic

UGS : 210000040227
$5,329.32
$8,198.95
$5,329.32
Size: M
Demo E-Bike Devinci E-SpartanLite MX Eagle 90 - Holograyphic

Demo E-Bike Devinci E-SpartanLite MX Eagle 90 - Holograyphic

Description

Demo E-Bike Devinci E-Spartan Lite AL Eagle 90 12S - Holograyphic

Ce vélo sera disponible pour ramassage à partir du 1er Octobre 2026.

This bike will be available for pickup starting October 1st, 2026.

Light assist. Burly capability.

Big bike energy, now electrified. Tame the burly without holding back. The E-Spartan Lite is built to turn turbulence into confidence. Made in Canada and powered by German precision, its chassis hides Bosch’s Performance Line SX drive system and a 400Wh battery. With 165mm of rear travel and 170mm up front, a don’t-hold-back attitude, and Devinci’s lifetime warranty, the E-Spartan Lite is built to perform where it matters most…on burly territory.

Technical Specifications

Manufacturing

Handcrafted in Canada

Frame

  • FRAME Aluminum Optimum G04 165mm
  • HEADSET FSA Orbit | 1.5 | Zero Stack
  • SEAT CLAMP Alloy CNC | 34.9mm

Suspension

  • SUSPENSION FORK Rockshox Zeb Select 29 | DB | 170mm | 15x110 | 44 Offset
  • REAR SHOCK Rockshox Vivid Select+ | 205x65T

Cockpit

  • HANDLEBAR V2 Pro | B:35mm | R:30mm | W:800mm
  • STEM V2 Pro | B:35mm | L:40mm | 0°
  • SADDLE SDG BELAIR Max eMTB
  • SEATPOST TranzX Dropper | 31.6mm
  • SEATPOST LEVER TranzX
  • GRIPS Devinci | w/lock-on

Brakes

  • FRONT BRAKE SRAM Maven Bronze
  • REAR BRAKE SRAM Maven Bronze
  • FRONT ROTOR SRAM Centerline | 220mm
  • REAR ROTOR SRAM Centerline | 200mm

Drivetrain

  • REAR DERAILLEUR SRAM Eagle 90 | 12s
  • REAR SHIFTER SRAM Eagle 90 | 12s
  • CRANKARM SRAM Eagle 90 Bosch | 155mm
  • CHAINRING Sram XX Eagle 34T Bosch EMTB
  • CASSETTE SRAM XS1270 T-TYPE | 12s | 10-52T
  • CHAIN SRAM Eagle 70

Wheels

  • FRONT TIRE Maxxis Assegai | 29x2.5WT | 3C | DD | TR | MaxxGrip
  • REAR TIRE Maxxis Minion DHR II | 27.5x2.5WT | 3C | DD | TR | MaxxTerra
  • FRONT WHEEL RaceFace Aeffect R30 29 Boost110x15 | 30mm inner
  • REAR WHEEL RaceFace Aeffect R30 27.5 B148x12 HG | 30mm inner EMTB

E-System

  • COMPUTER BOSCH System controller BRC3100
  • DRIVE UNIT Bosch Performance Line SX | 55NM | 600W
  • BATTERY Bosch CompactTube 400 | 36V | 400 Wh

Weight

21.65 kg / 47.73 lb
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

FRAME TECH SPECS

Rear travel 165 mm
Front travel 170 mm
Wheel size Mixed-Wheel (27,5'' rear & 29'' front)
Rear tire clearance 27,5'' x 2.6”
Rear hub spacing 12 x 148 Boost
Max & min chainring clearance 36T - 32T
Chainline 55 mm
Derailleur hanger UDH™
Caliper mount 200 mm Post Mount
Max rear rotor size 220 mm
Seat tube diameter 31.6 mm ID / 34.9 mm OD
Dropper post length M → 170 mm / L → 200 mm / XL → 230 mm
Seatpost max insertion M → 270 mm / L → 300 mm / XL → 340 mm
Headset Top ZS44 | Bottom ZS56
Cable routing Internal
Rear shock dimension Trunnion | 205 x 65 mm
Rear shock hardware Top NA | Bottom 35 x 10 mm
Linkage bearing type Enduro™ double-lip sealed
Fork dimensions Axle-to-Crown measurement 586 mm / Offset 44 mm
Chain guide mount Low Direct Mount
Drive unit Bosch Performance Line SX | Smart System
Battery Bosch CompactTube 400 - 400Wh
Frame material Aluminium 6061-T6 | Optimum G04
