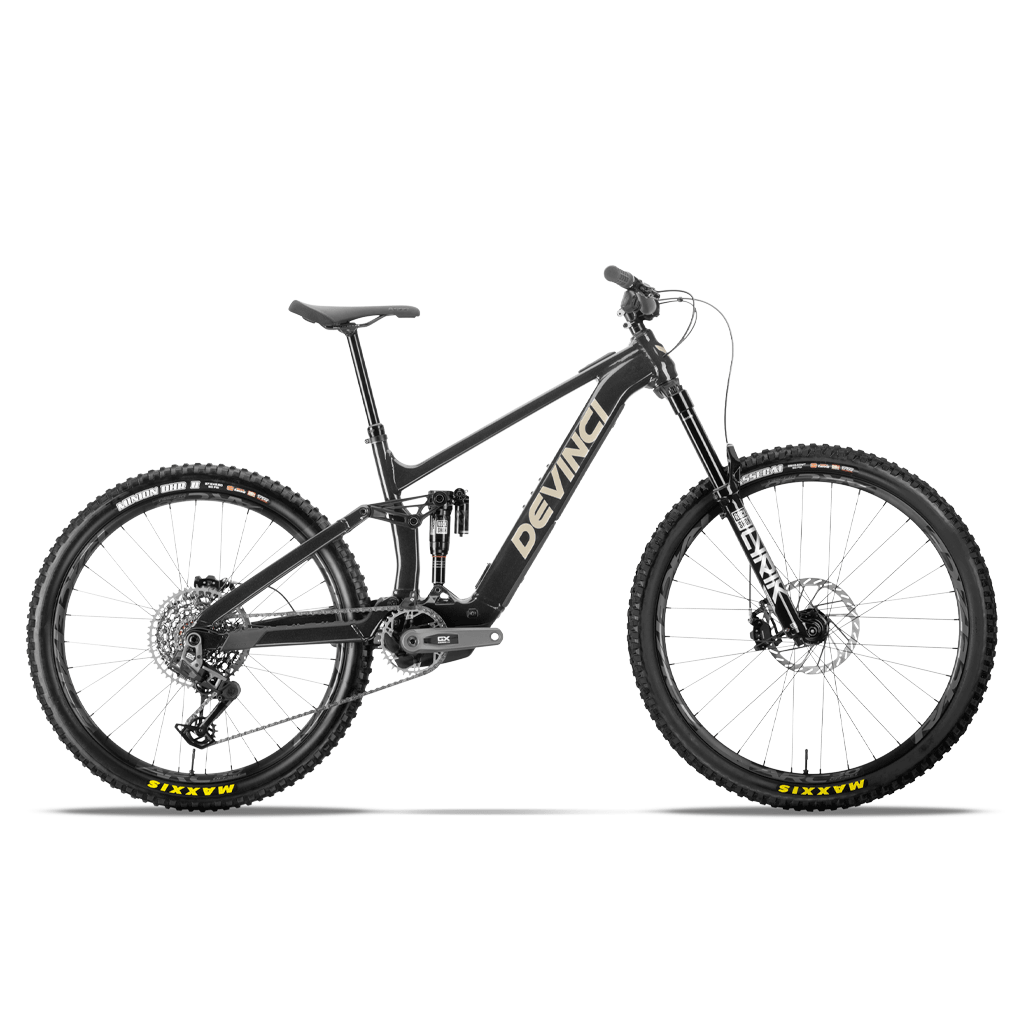

E-Bike Devinci E-Troy Lite AL GX AXS MX - Night Crow

UGS : 210000038343
$9,698.95
$9,698.95
$9,698.95
Size: M
E - Bike Devinci E - Troy Lite AL GX AXS MX - Night Crow - Genetik Sport

E-Bike Devinci E-Troy Lite AL GX AXS MX - Night Crow

Description

E-Bike Devinci E-Troy Lite AL GX AXS MX - Night Crow

Getting you more on every ride

Climb in a flash and descend in style with this next generation rig that combines Bosch wattage with the finesse and feel Devinci trail bikes are known for. You’ll sense the power delivered by a Bosch system that’s compatible with a range extender for longer days. More than anything, you’ll notice how subtle the difference is on the way down. An agile made-in-Canada chassis with mixed wheels and suspension kinematics brings the spirit of a Devinci trail bike to the world of power assist. The E-Troy Lite gives you more on every ride.

Technical Specifications

Manufacturing

  • Handcrafted in Canada

Frame

  • HEADSET FSA Orbit | 1.5 | Zero Stack
  • SEAT CLAMP Alloy CNC | 34.9mm

Suspension

  • SUSPENSION FORK Rockshox Lyrik Ultimate DB | 29 | 160 | 110x15 | 44OS |Black
  • REAR SHOCK Rockshox Super Deluxe Ultimate | 185x55 Trunnion

Cockpit

  • HANDLEBAR RaceFace ERA 35 | B:35mm | R:40mm | W:800mm
  • STEM RaceFace Turbine R35 | B:35mm | L:40mm | 0°
  • SADDLE SDG BELAIR Max eMTB
  • SEATPOST SDG Tellis 31.6mm
  • SEATPOST LEVER SDG Tellis | Matchmaker | 1x Lever
  • GRIPS Devinci | w/lock-on

Brakes

  • FRONT BRAKE SRAM Maven Silver
  • REAR BRAKE SRAM Maven Silver
  • FRONT ROTOR SRAM HS2 | 200mm
  • REAR ROTOR SRAM HS2 | 200mm

Drivetrain

  • REAR DERAILLEUR SRAM GX Eagle AXS | T-Type | 12s
  • REAR SHIFTER SRAM AXS POD | 12s
  • CRANKARM Crankarm Sram GX 155
  • CHAINRING Sram XX Eagle 34T Bosch EMTB
  • CASSETTE SRAM XS1275 | T-TYPE | 12s | 10-52T
  • CHAIN SRAM GX | T-Type | 12s

Wheels

  • FRONT RIM RaceFace ARC30 29 | 30mm inner | TR
  • FRONT HUB RaceFace Vault | 6bolts | TA 15x110mm
  • REAR HUB RaceFace Vault | Boost 148x12 | XD | 6bolts
  • REAR RIM RaceFace ARC30 27.5 | 30mm inner | TR
  • SPOKES Sapim Stainless 14G w/Nylok
  • FRONT TIRE Maxxis Assegai | 29x2.5WT | 3C | EXO+ | TR | MaxxGrip
  • REAR TIRE Maxxis Minion DHR II | 27.5x2.5 | 3C | EXO+ | TR | MaxxTerra

E-System

  • COMPUTER BOSCH System controller BRC3100
  • DRIVE UNIT Bosch Performance Line SX | 55NM | 600W
  • BATTERY Bosch CompactTube 400 | 36V | 400 Wh

Weight

20.10 kg / 44.31 lb
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

FRAME TECH SPECS

Rear travel 150 mm
Front travel 160 mm
Wheel size Mixed-Wheel (27,5'' rear & 29'' front)
Rear tire clearance 27,5'' x 2.6”
Rear hub spacing 12 x 148 Boost
Max & min chainring clearance 38T - 32T
Chainline 55 mm
Derailleur hanger UDH™
Caliper mount 200 mm Post Mount
Max rear rotor size 220 mm
Seat tube diameter 31.6 mm ID / 34.9 mm OD
Dropper post length S → 150 mm / M → 170 mm / L → 200 mm / XL → 240 mm
Seatpost max insertion S → 240 mm / M → 270 mm / L → 300 mm / XL → 340 mm
Headset Top ZS44 | Bottom ZS56
Cable routing Internal
Rear shock dimension Trunnion | 185 x 55 mm
Rear shock hardware Top NA | Bottom 35 x 10 mm
Linkage bearing type Enduro™ double-lip sealed
Fork dimensions Axle-to-Crown measurement 571 mm / Offset 44 mm
Chain guide mount Low Direct Mount
Drive unit Bosch Performance Line SX | Smart System
Battery Bosch CompactTube 400 - 400Wh
Speed sensor Type Rotor magnet & dropout sensor
Frame material 6061-T6 Aluminum | Optimum G04
